0.5M3 Flammability Test Equipment H62 Brass Flame Tube 1100×500×900 mm

0.5M3 Flammability Test Equipment H62 Brass Flame Tube 1100×500×900 mm

product manual

Meet the standards:

in line with MT386-1995 standards;

Scope: This instrument is suitable for coal mine fire-retardant cables, flame retardant flame

retardant cable connector test.

Technical parameters:

1. Combustion box size: W1100 × D500 × H900mm, about 0.5m3, the front door is a transparent

glass window;

2. Electric control box size: W1100 × D500 × H700mm;

3. Box material: SUB304 stainless steel;

4. Ignition device: manual electronic high-voltage ignition;

5. Spraying lamp angle: 900, the ignition angle: 90 °, the flame height: the inner flame is 75 ±

5mm, the outer flame is 125 ± 10mm;

6. Thermometer: 0 ~ 800 ℃, with φ1mm * 50mm K-type thermocouple, the resolution is Φ9.5mm,

the flame tube is H62 brass;

7. Gas: more than 95% methane gas; 0.1 ℃, the accuracy is 1, when the temperature reaches

204 ℃ ± 2 ℃ buzzer beep tone;

8. Load current: AC0.1 ~ 3000A continuous adjustment, 4½LCD digital meter shows the current

test current, the accuracy of ± 2);

9. Current adjustment mode: manual adjustment;

10. Load function: with / without load selection function, through the switch;

11. Burning time: 0.1-999.9S / H / M continuous setting and timing;

12: working voltage: AC220V ± 10% 50HZ ± 5%;

13. Weight: about 300kg. The time of the ignition: 0.1-999.9S / H / M continuous time, with a

delay time stop button;

flammability testing equipment

flammability test chamber

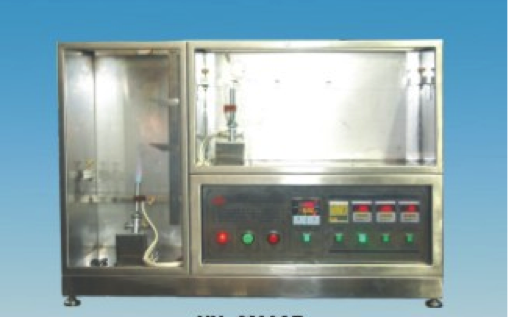

0.5M3 Flammability Test Equipment H62 Brass Flame Tube 1100×500×900 mm Images
